System Configuration

The Mobile2b System Configuration gives administrators fine-grained control of the functionality of the platform.

The configuration uses the YAML markup language. In this documentation all available configuration parameters are listed including their expected value types and default values.

---
start:
  #
  carousel:
  - imageUrl: "IMAGE_LINK"
  # not mandatory
  title:
      en: "Some Title"
  # not mandatory
  subTitle:
      en: "Some Sub-Title"
  #
  tiles:
   - title:
      en: "Some Title"
   icon: "LINK_TO_IMAGE"
   action:
      type: "LIST_BUSINESS_OBJECTS" or "START_WORKFLOW" or "OPEN_INTERNAL_URL"
      data:
        modelId: "5de67e37f8028b0001156237"
        workflowId: "5e58f0b78016b800013d39d1"
        url: "/dashboard/kpi?5e54d77cc607110001be1125=5fd08d50f9f9d741cf113641"
    title:
      de: "Subelement Title"
    subElements:
    - title:
        de: "KPI-Dashboard"
      icon: "pie-chart"
      action:
        type: "OPEN_INTERNAL_URL"
        data:
          url: "/dashboard/kpi?5e54d77cc607110001be1125=5fd08d50f9f9d741cf113641"
workflows:
  # If set, required fields are marked with an * (default: false)
  showAsteriskOnRequiredFields: true
  # If set, images are compressed to this max MB size before upload
  maxImageSize: 1.0
  # Whether to show numbers in repeat groups, like `1.`, `2.` (default: false)
  showNumberingInRepeatGroups: true
  # Whether access control on workflows is enabled or not (default: true)
  accessControlEnabled: true
  # A list of IDs of workflows that cannot be deleted using the UI
  deleteLock:
  - "5b3235a20a975a73932596d4"
  - "5cb6d6980a975a23e9cc6384"
  # A list of IDs of business models for which the app shows selection buttons for each object instead of a searchable list
  # Warning: this should only be used for models with < 10 objects
  showObjectSelectionAsButtons:
  - "5cf642fb0a975a6aa0017dce"
  - "5d00f6068896f70001488bc4"
  # listed workflows (IDs) will be hidden after defined months after publishing
  workflowAutoExpiry:
     - "5b3235a20a975s73932596d4"
     - "5cb6d6980a975a23e9cc6384"
  workflowAutoExpiryAfterMonths: 12
reports:
  # Whether to show finish date and duration in reports (default: true)
  showDurationInExport: true
  # If set, a custom header image is shown instead of the default letterhead when exporting reports as PDF or DOCX
  headerImageUrl: "https://some-image.jpg"
  # Change the width/height of images in pdf reports (attention: the photo ratio remains unchanged)
  photoWidth: 500
  photoHeight: 500
  #
  sendersModelId: "BUSINESS_MODEL_ID"
  # Whether to show report table summary in report view (default:false)
  showSummary: true
  # Setting this to true (default false) shows 2 export buttons - Export to PDF and Export to Word
  showExportButtons: false
  # Default value for when opening a report, can be changed by the UI (toggle on the right side)
  includeEmptyValues: true
  # Whether to show the Job ID in the reports when printing/exporting or not (default true)
  showJobIdInExport: false
  # Whether to show the start date & time of Job in the reports when printing/exporting (default true)
  showStartInPrint: false
  # Whether to show previous jobs the reports when printing/exporting (default true)
  showPreviousJobsInExport: false
  # Whether to show triggered jobs the reports when printing/exporting (default true)
  showTriggeredJobsInPrint: false
  # Whether to show the mybusiness.ai footer in the reports when printing/exporting (default true)
  showGeneratedLabelInFooter: false
jobs:
  # Enable jobs in progress to be deleted by the admin, not only the user it is assigned to (default: false)
  alwaysAllowInProgressDeletion: true
  # Enable finished jobs to be deleted by the admin (default: false)
  allowCompletedJobsDeletionForAdminRole: true
  # Whether jobs in the future should be locked or open (default: false)
  allowFutureJobAccess: false
  # Whether to show a common case ID across multiple jobs (default: false)
  showCaseId: false
  # Whether to highlight tasks with a colored background (default: false)
  highlightTasks: false
  # Globally enable or disable email notifications for newly created jobs (default: true)
  enableEmailNotifications: true
  # Globally set email notifications for jobs in days (default: 1)
  emailNotificationsEarliestBeforeDays: 1
  # Globally set email notifications for overdue jobs in days (default: 1)
  emailNotificationsOverdueInDays: 1
  responsibilitySelect:
    # Allow groups selection as responsible for a job (default:true)
    includeGroups: true
  #
  missedJobReasonOptions:
   de:
    - "Feiertag"
    - "Sonstiges"
    en:
    - "Holiday"
    - "Other"
  # Globally enable to delete also jobs in progress (default: false)
  alwaysAllowInProgressDeletion: true
  # Show Symbols (before job planning) to preselect workflows and relationsships
  templates:
  - icon: "sitemap"
    label:
      de: "Preselect Job #1"
    workflowId: "5df35fa39306590001c17426"
    relationships:
    - modelId: "5cbf7f6c2ad84800015a1c34"
    - modelId: "5c9e30b6790d640001ab8c8c"
    - modelId: "5cbf5ee52ad84800015a1a2f"
    - modelId: "5cbf5f422ad84800015a1a30"
    - modelId: "5d1c7be6324ccb0001ec383f"
    - modelId: "5cb722af2cb5f400013dfba8"
  - icon: "sitemap"
    label:
      de: "Preselect Job #2"
    workflowId: "5df35fb99306590001c17427"
    relationships:
    - modelId: "5cbf7f6c2ad84800015a1c34"
    - modelId: "5c9e30b6790d640001ab8c8c"
    - modelId: "5cbf5ee52ad84800015a1a2f"
    - modelId: "5cbf5f422ad84800015a1a30"
    - modelId: "5d1c7be6324ccb0001ec383f"
    - modelId: "5cb722af2cb5f400013dfba8"
  - icon: "sitemap"
    label:
      de: "Preselect Job #3"
    workflowId: "5df35fc49306590001c17428"
    relationships:
    - modelId: "5cbf7f6c2ad84800015a1c34"
    - modelId: "5c9e30b6790d640001ab8c8c"
    - modelId: "5cbf5ee52ad84800015a1a2f"
    - modelId: "5cbf5f422ad84800015a1a30"
    - modelId: "5d1c7be6324ccb0001ec383f"
    - modelId: "5cb722af2cb5f400013dfba8"
# Show Symbol opening more Sub-symbols
  - icon: "cogs"
    label:
      de: "Preselect Job #4 more"
    subTemplates:
    - icon: "cogs"
      label:
        de: "Preselect Job #4.1"
      relationships:
      - modelId: "5cbf7f6c2ad84800015a1c34"
      - modelId: "5c9e30b6790d640001ab8c8c"
      - modelId: "5cbf5ee52ad84800015a1a2f"
      - modelId: "5cbf5f422ad84800015a1a30"
      - modelId: "5d1c7be6324ccb0001ec383f"
      - modelId: "5cb722af2cb5f400013dfba8"
    - icon: "cogs"
      label:
        de: "Preselect Job #4.2"
      relationships:
      - modelId: "5cbf7f6c2ad84800015a1c34"
      - modelId: "5c9e30b6790d640001ab8c8c"
      - modelId: "5cbf5ee52ad84800015a1a2f"
      - modelId: "5cbf5f422ad84800015a1a30"
      - modelId: "5d1c7be6324ccb0001ec383f"
      - modelId: "5cb722af2cb5f400013dfba8"
    - icon: "cogs"
      label:
        de: "Preselect Job #4.3"
      relationships:
      - modelId: "5cbf7f6c2ad84800015a1c34"
      - modelId: "5c9e30b6790d640001ab8c8c"
      - modelId: "5cbf5ee52ad84800015a1a2f"
      - modelId: "5cbf5f422ad84800015a1a30"
      - modelId: "5d1c7be6324ccb0001ec383f"
      - modelId: "5cb722af2cb5f400013dfba8"
    - icon: "cogs"
      label:
        de: "Preselect Job #4.4"
      relationships:
      - modelId: "5cbf7f6c2ad84800015a1c34"
      - modelId: "5c9e30b6790d640001ab8c8c"
      - modelId: "5cbf5ee52ad84800015a1a2f"
      - modelId: "5cbf5f422ad84800015a1a30"
      - modelId: "5d1c7be6324ccb0001ec383f"
      - modelId: "5cb722af2cb5f400013dfba8"
  - icon: "random"
    label:
      de: "Sonstige"
      en: "Empty"
    relationships:
    - modelId: "5cbf7f6c2ad84800015a1c34"
    - modelId: "5c9e30b6790d640001ab8c8c"
    - modelId: "5cbf5ee52ad84800015a1a2f"
    - modelId: "5cbf5f422ad84800015a1a30"
    - modelId: "5d1c7be6324ccb0001ec383f"
    - modelId: "5cb722af2cb5f400013dfba8"
tasks:
  # If set to true, non-admin users can stop currently assigned tasks and flow runs from the Tasks page (default: false)
  allowUsersToStopTasks: false
  # If set to true, the Tasks area is hidden in the UI (default: false)
  hidden: false
businessObjects:
  # Enable to duplicate a business object with all hierarchical links (relations)
  duplicateWithRelations:
  - "5e54d77cc607110001be1125"
  # Disable access control on specific business object collections (default: enabled)
  accessControlDisabled:
  - "5d249b082fa6e0000175e9c9"
  # If set to false the Gallery page is not shown
  showGallery: false
  # If set to false the Map page is not shown
  showMap: false
  # Using to manually add events to business object timeline
  events:
   #
   icon: icon name from here - https://fontawesome.com/v4.7.0/icons/, do not write `fa-` just the icon name
   #
   type: unique string, for example "TYPE_1"
   #
   label: {en:"Some text",de:"Some text"}
  # To define an idPattern for a Business object use the element link of the ID field and define the pattern e.g. starting with W-
  idPattern:
    5f436eae9444e8500d0ec3b0: "W-{ID}"
businessModels:
  # Used for filtering business objects table
  hierarchy:
  - "model_id_1"
  - "model_id_2"
  - "model_id_3"
ui:
  # A custom color for buttons, icons etc.
  primaryColor: "#E20074"
  # A custom color for titles of groups and nested workflows
  groupTitleColor: "#606060"
  # A custom background color for groups and nested workflows
  groupBackgroundColor: "#606060"
  # A custom color for top bars
  topBarBackgroundColor: "#E20074"
  # A custom color for top bar titles and icons
  topBarTitleColor: "#FFFFFF"
  # For explanation see below the .yaml config
  enforceUiAccessControl: false # true or false, defaults to false
kpiDashboard:
  #
  modelHierarchy:
  - "BUSINESS_MODEL_ID"
  - "BUSINESS_MODEL_ID"
  #
  indicatorLimits:
    #
    amberLimit: 0-1
    #
    redLimit: 0-1
businessModels:
  hierarchy:
  # Define the business model hierarchy to show in the business model overview and properties
  - "5e54d77cc607110001be1125"
  - "5fc5fbbaf2b78d27b72cad84"
  - "5db2d38a18ae7a00015691f9"
inventory:
  #
  articleModelId: "BUSINESS_MODEL_ID"
  #
  accountModelId: "BUSINESS_MODEL_ID"
users:
  # Used when creating new user
  defaultGroups: [1000,1001,1002]
  # Used when creating new user
  defaultFeatures: ["news","jobs","workflows","projects","time","documents","inventory","messaging","sensors","objects"]
  # Custom fields for users
  customFields:
    - label:
      en: "Max jobs per month"
    type: "NUMBER"
    id: "maxJobs"
views:
  # when false: Only admins can create views, when true or not present: both admins and users with sufficient permissions can create views.
  nonAdminCreation : true
  # when true: every newly created view is automatically shared with the whole organization as Viewer (read-only).
  # when false or not present: new views stay private to their creator. (default: false)
  autoFavorite: false
appearance:
  # Controls how relationship values are displayed in the Business Objects table view.
  # Options: "HORIZONTAL" (default, comma-separated on one line) or "VERTICAL" (one value per line)
  relationshipDisplayDirection: "HORIZONTAL"

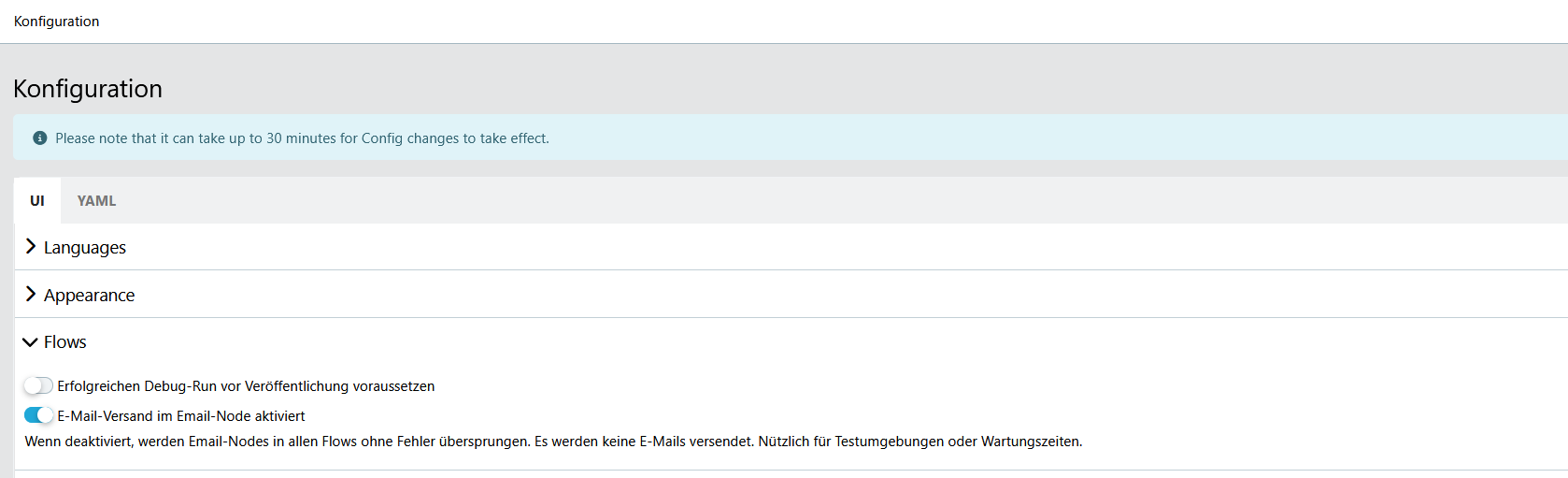

flows:

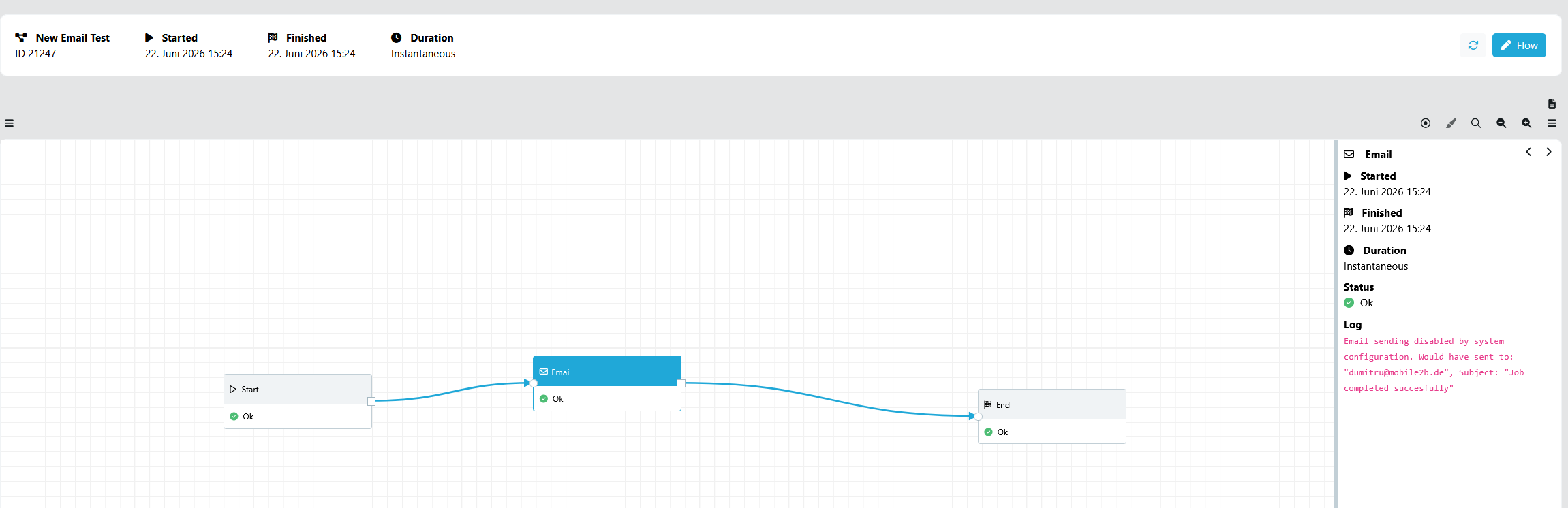

  # When set to false, Email Nodes in all flows are silently skipped — no emails are sent.
  # Useful for testing environments or during maintenance windows. (default: true)
  emailNodeEnabled: true
search:
  # Whether searching Business Objects also matches values inside their One-to-Many
  # relations (e.g. finding a parent by a value on one of its children). (default: false)
  inRelations: false

UI Access Control

Configuration

ui:
  enforceUiAccessControl: false   # defaults to false

Overview & How to Enable

enforceUiAccessControl activates a more strict access control for all UIs in the platform.

• Default: false
• When enabled, users will only see or access UIs they explicitly have permission for.
• Before activating the feature, you will see a modal explaining all effects.

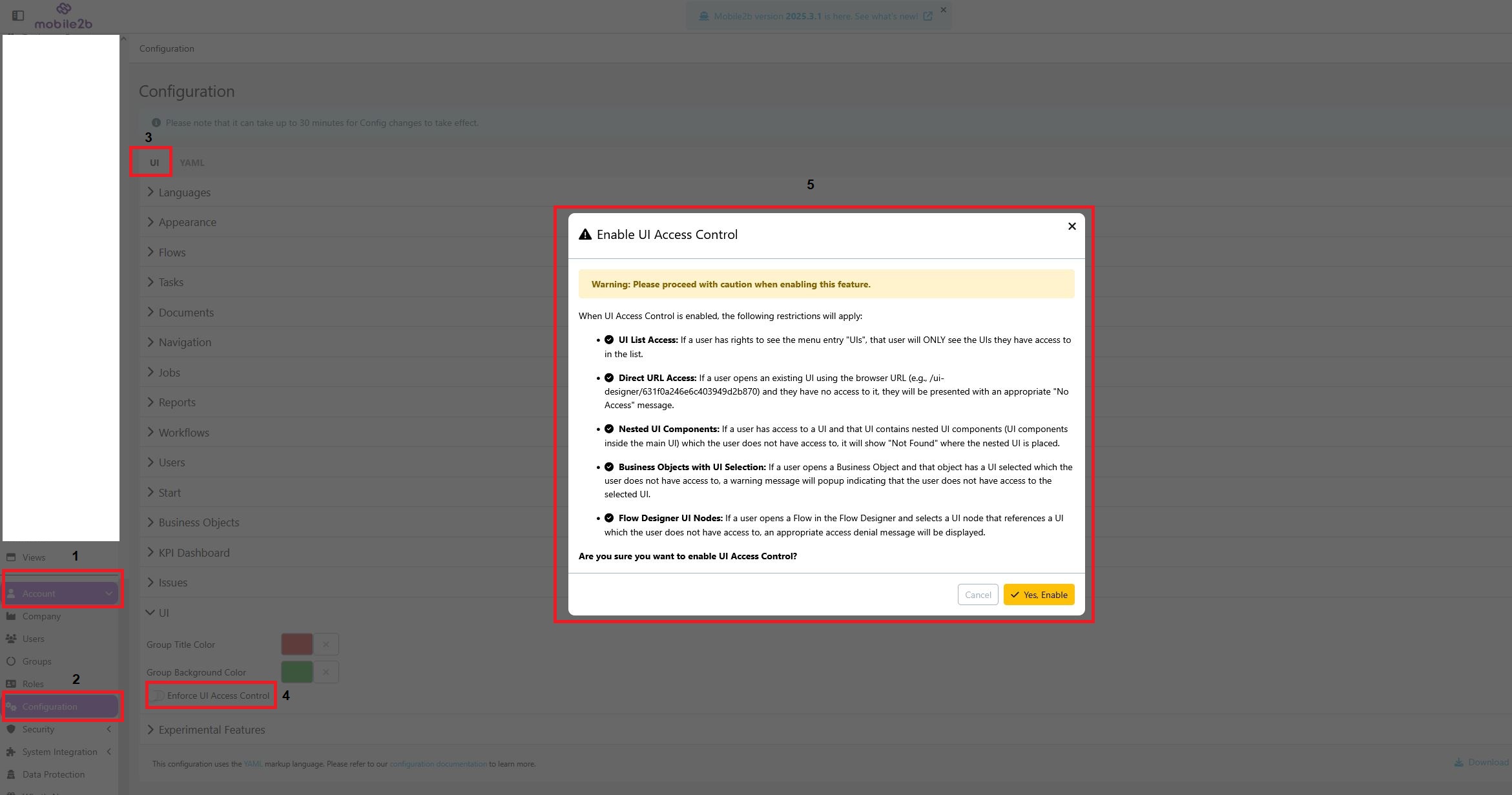

Navigation & Enable Modal:

---

What Happens When Enabled

1. UI List Access

Users will only see UIs in the list that they have access rights for.

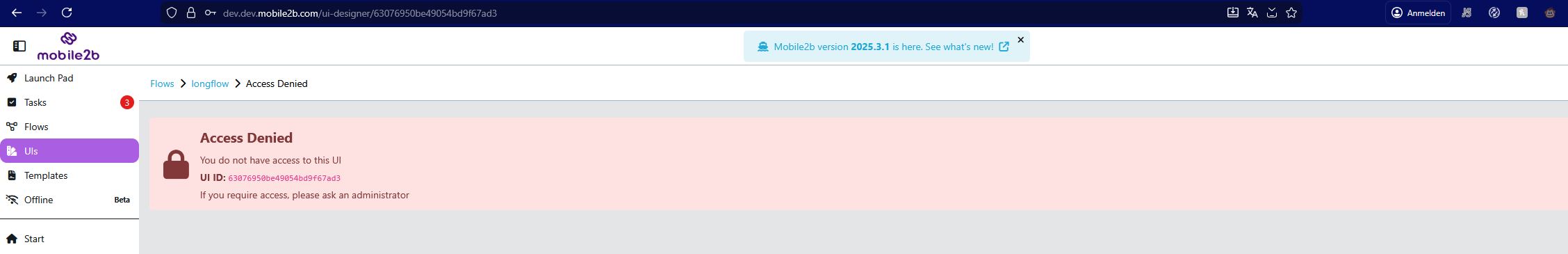

2. Direct URL Access Restriction

If a user tries to open a UI directly via URL without permission, they receive a “No Access” message.

Screenshot:

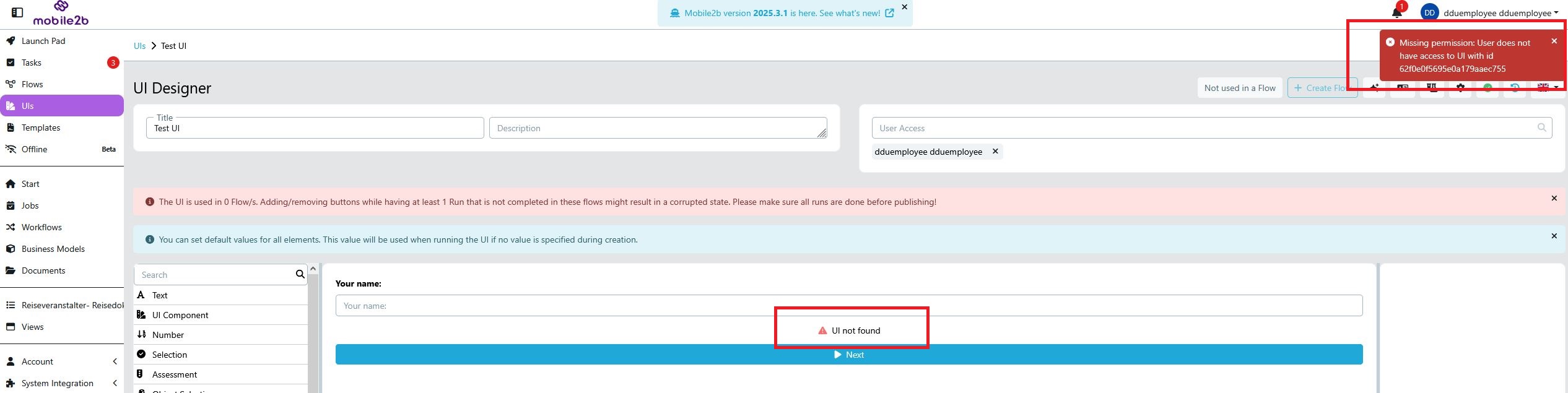

3. Nested UI Components

If a UI contains nested UIs and the user lacks permission for those nested components, they will see a “Not Found” placeholder.

Screenshot:

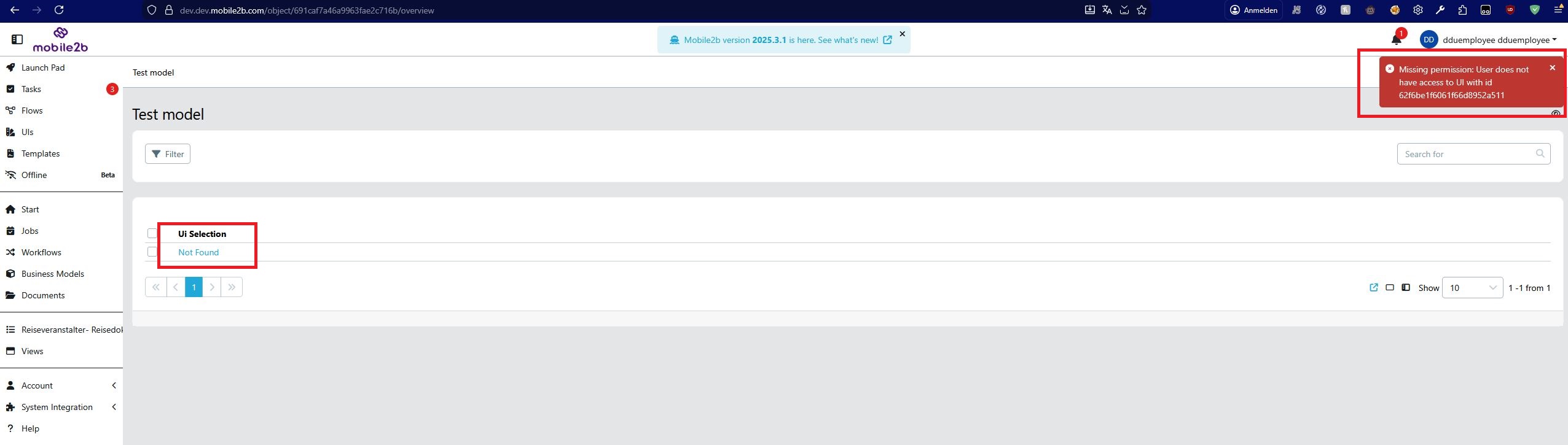

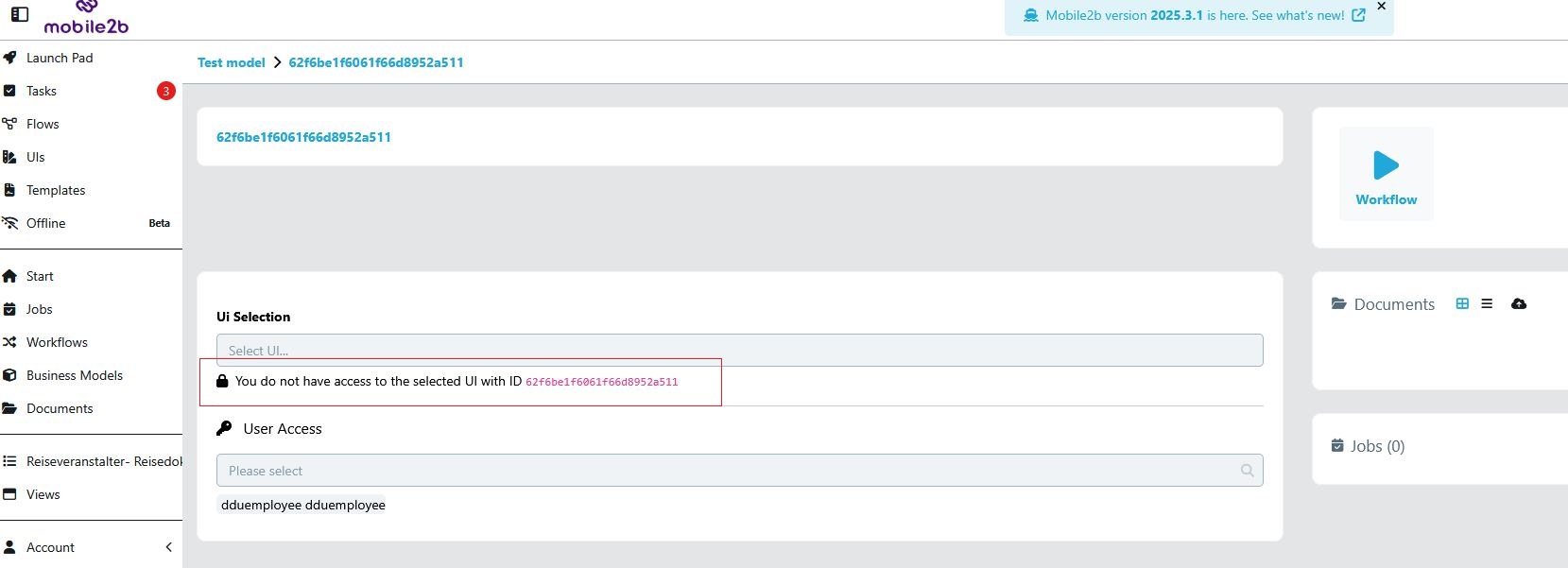

4. Business Objects with UI Selection

If a Business Object references a UI that the user does not have access to, a warning appears informing them about missing UI access.

Screenshot:

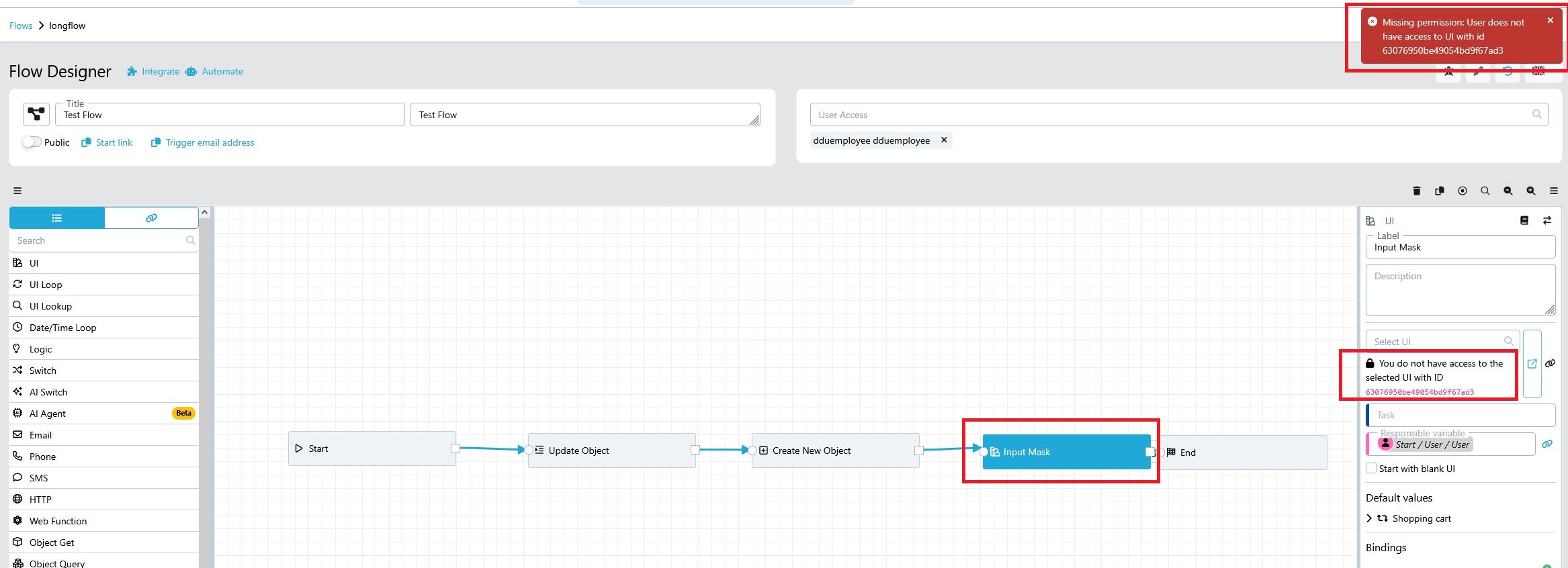

5. Flow Designer UI Nodes

If a UI node inside a Flow references a UI the user cannot access, an error message will be shown in the Flow Designer.

Screenshot:

---

Summary

Setting	Default	Description
ui.enforceUiAccessControl	false	Enables strict access control for all UI interactions

When active, this affects: - UI list visibility
- Direct URL access
- Nested UI loading
- Business Object UI selections
- Flow Designer UI nodes

---

Relationship Display Direction

Configuration

appearance:
  relationshipDisplayDirection: "HORIZONTAL"

Overview

Controls how relationship values (One-to-Many, Many-to-Many) are displayed in the Business Objects table view.

Value	Behavior
HORIZONTAL (default)	Related values are shown comma-separated on a single line
VERTICAL	Each related value is shown on its own line

Choose VERTICAL when relationship cells contain many values and horizontal space is limited.

---

Email Node Feature Flag

Configuration

flows:
  emailNodeEnabled: true

Overview

When set to false, Email Nodes in all flows are silently skipped — no emails are sent and the flow continues to the next node as if the Email Node succeeded.

Value	Behavior
true (default)	Email Nodes send emails normally
false	Email Nodes are skipped; no emails are sent

This flag is useful for: - Testing environments where you do not want to send real emails during flow development. - Maintenance windows where email sending should be temporarily suspended without modifying individual flows.

System Configuration toggle:

Email Node in Flow Designer:

---

Search In Relations

Configuration

search:
  inRelations: false

Overview

Controls whether searching Business Objects also looks inside their One-to-Many relation values — for example, finding a parent record because a value matches on one of its related child records.

Value	Behavior
false (default)	Search only matches the object's own property values
true	Search also matches values on the object's One-to-Many related children

Searching inside relations is disabled by default, since it can be significantly slower on models with large or deeply-related child collections. Enable it only for accounts/models where searching across relations is needed.

---
