📄 Document Viewer#

The Document Viewer element allows users to display and interact with documents directly within the application.

🧭 Overview#

The Document Viewer provides multiple ways to load and preview documents: - Select a document from internal storage - Upload a document from the user’s device - Provide an external URL to preview a remote document

Supported document types include PDF, images, and other common file formats.

⚙️ Features#

🗂️ Internal Document Selection#

  • Users can browse and select an existing document from internal storage.
  • Once selected, the document is automatically displayed as a preview.
  • PDF files are fully interactive — users can scroll, zoom, and navigate pages.

📤 Upload Document#

  • Users can upload a local file to view it immediately in the preview pane.
  • Uploaded files are not automatically stored unless explicitly saved by the user or flow logic.

🌐 External URL#

  • The viewer can load and preview documents directly from an external URL.
  • Useful for showing files stored in remote repositories or cloud services.

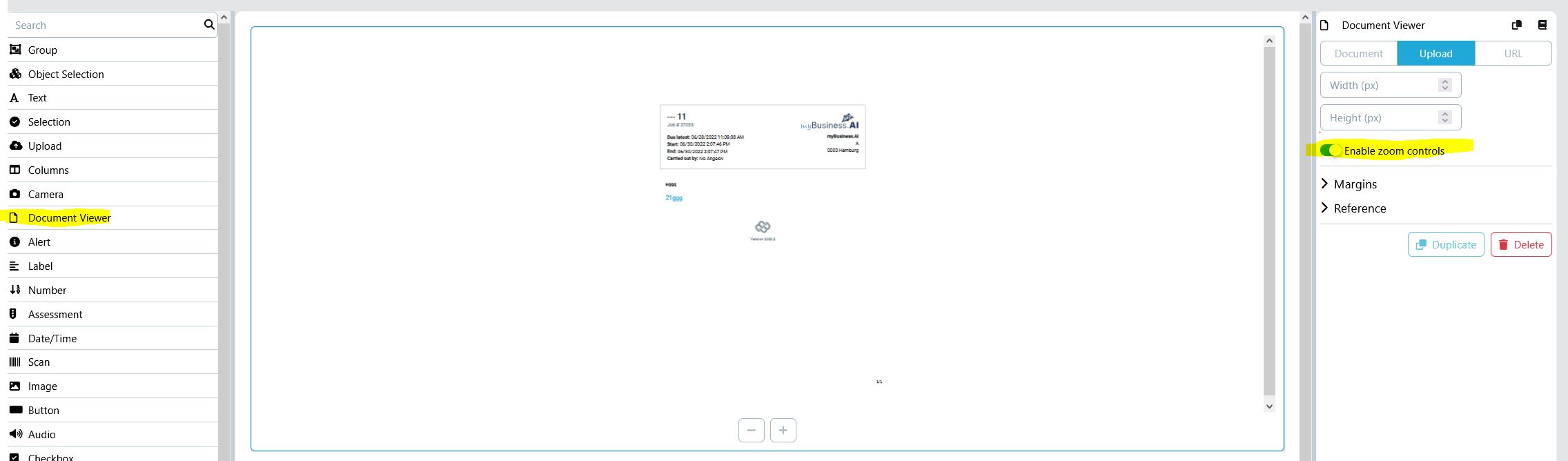

🔍 Zoom Controls#

  • When the “Enable Zoom Controls” option is activated:
  • Two buttons appear in the viewer: ➖ Zoom Out and ➕ Zoom In.
  • Users can adjust the zoom level interactively for better readability.
  • Works especially well for detailed PDFs or image-based documents.

Zoom Controls

🧩 Configuration Options#

Option Description
Source Type Select how the document is provided (Internal, Upload, or External URL).
Enable Zoom Controls Toggles the plus/minus zoom buttons for the viewer.
Preview Enabled Determines whether the document is shown in an embedded preview frame.

🧠 Notes#

  • PDF previews use a built-in interactive PDF viewer.
  • Large files may take longer to load depending on size and network speed.
  • If an unsupported file type is selected, a fallback message is shown instead of a preview.

🧪 Example Use Case#

  1. A user uploads a PDF invoice.
  2. The Document Viewer displays it directly in the UI.
  3. The user uses the Zoom In button to read small print.
  4. Alternatively, the user selects an already uploaded document from internal storage.
  5. The selected document preview updates instantly.
